Tessonics wall thickness gauge TTG 1

Tessonics, the leader in Ultrasound Spot Weld Testing, is now releasing its new Tessonics Thickness Gauge TTG 1. The TTG 1 is a state-of-the-art economic thickness gauge with flexible ultrasound probe options. Its ergonomic and robust design allows for one-hand operations and convenient field usage.
Thee TTG 1’s different operation modes (Digit, A-scan and B-scan) make it suitable for simple wall thickness measurements as well as for corrosion testing with data logging.

Features

  • Digit, A-scan and B-scan display
  • One-hand operation
  • Data logging, incl. A- and B-scan data
  • Through coating measurements
  • 1- and 2-point calibration
  • Magnetic Fixture
  • Versatile dual-element probes suitable for a variety of applications
  • Defining limits

Applikationen

  • Wall-thickness measurements
  • Corrosion detection
  • Trough coating measurements
  • Tubing, boiler, pipeline, ship hulls, metal forming, etc.
Download TTG 1 data sheet

TTP probes

TTP probes were specifically designed for the use with the Tessonics TTG 1 and cover a wide range of application areas:
  • TTP 101: 5 MHz, Ø 10/2 mm
  • TTP 102: 10 MHz, Ø 6/2 mm
  • TTP 103:  2.5 MHz, Ø 12/2 mm

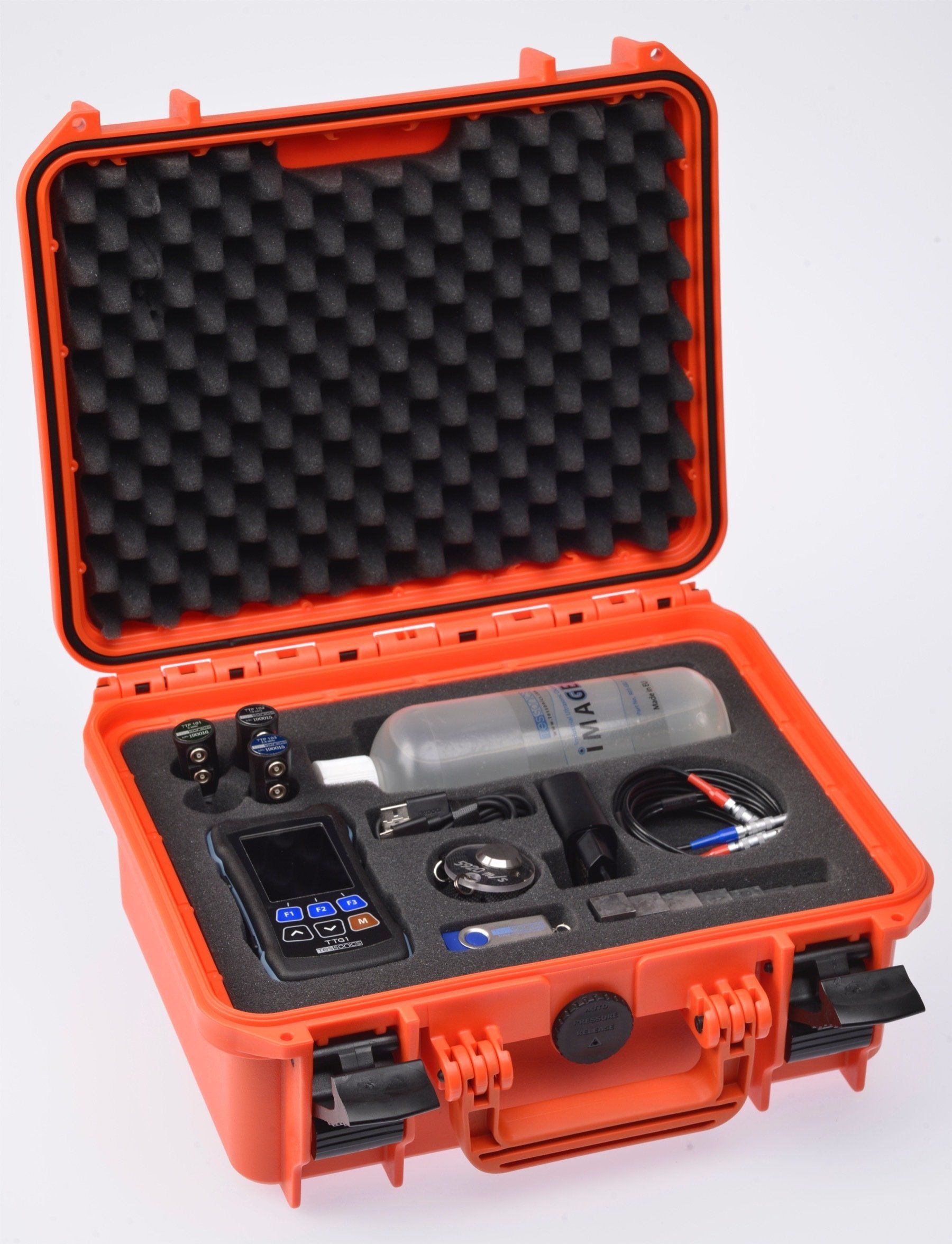

Scope of delivery

The Tessonics wall thickness gauge TTG 1 is provided with:

  • TTG 1 device
  • Ultrasound probe TTP101, 5 MHz (as ordered)
  • Ultrasound probe TTP102, 10MHz (as ordered)
  • Ultrasound probe  TTP103; 2,5 MHz (as ordered)
  • Cable (2x Lemo00 to 2x Lemo00)
  • Probe reference (6 mm)
  • Charger (EU or GB)
  • Micro-USB-cable
  • Carrying case
  • Manual on USB-stick
  • Bottle of ultrasound couplant (500 ml)
A 7-step reference block (1, 2, 5, 7, 10, 12, 15 mm) can be ordered as an option.
